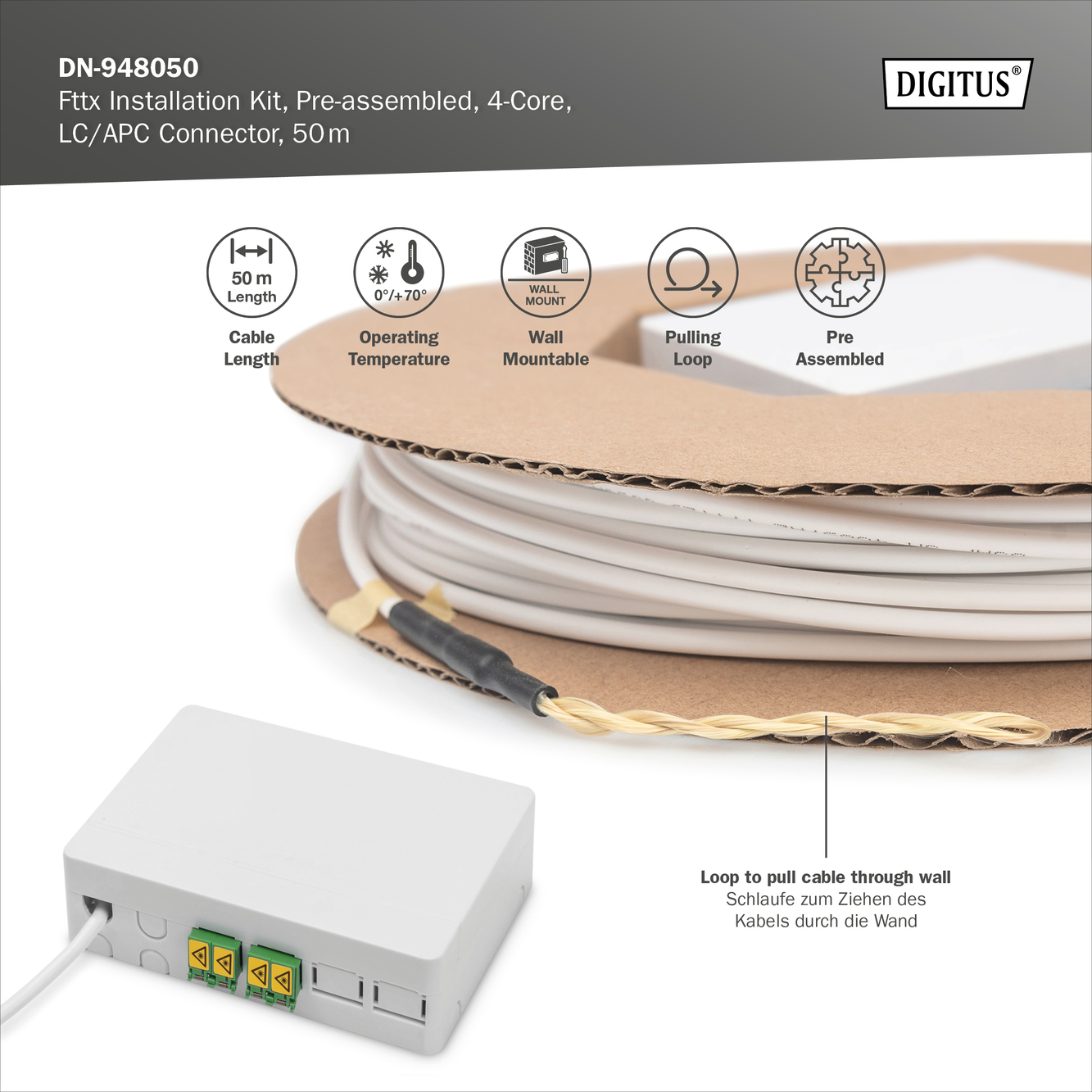

FTTX kassi með tengjum og 50 metra ljósleiðara tilbúinn til ídráttar – DN-948050

Lýsing Kassi með 4x LC-APC tengjum og tengdum 50 metra fjögurra leiðara ljósleiðara sem er tilbúinn til að draga í. Það eru fáanlegar aðrar lengdir. DESCRIPTION The growing requirement for extending Fiber networks into the home demands products that enable an easy and effecient installation to realize the network. The Digitus FTTH installation kit solution offers the possibility to easily extend and complete the fiber network inside the home. The easiness of installation comes from the fact that the product is delivered with all required components negating the requirement to individually look for components to make the installation. The termination outlet can be mounted at the designated location and making the connection to router is made easier as the LC/APC connectors are already included. The included fiber drop cable can then be pulled to make the connection to house transfer point which is mounted in building as the entry point for fiber network. It offers additional ports and splice options to meet requirement for scaling up the number of fiber connections. TECHNICAL DETAILS FTTH Wall Outlet : Termination box for FTTH applications 2x LC-APC duplex fiber optic coupler with shutter Coupler shutter ensures laser protection and dust protection Adapter Type : LC/APC Duplex Adapter Capacity : 4 pcs Dimensions (H*W*D) : 100 * 80 * 30 mm Color : White Weight : 75 g Working Temperature : -40 – 65 C Material: ABS FTTH Dropcable : 4 fibers 9/125µm G.657A2 bend optimized 900µm buffer, easily removable Aramid strain relief LSOH outer jacket, color white Cable construction: I/A-V(Q(ZN)H Short term Tensile strength : 200 N Operation Temperature : 0 – 70C PACKAGE CONTENT Fttx Installation Kit, Pre-assembled, 4-Core, LC/APC connector, 50m Mounting accessories (screws and bolts)
